Description

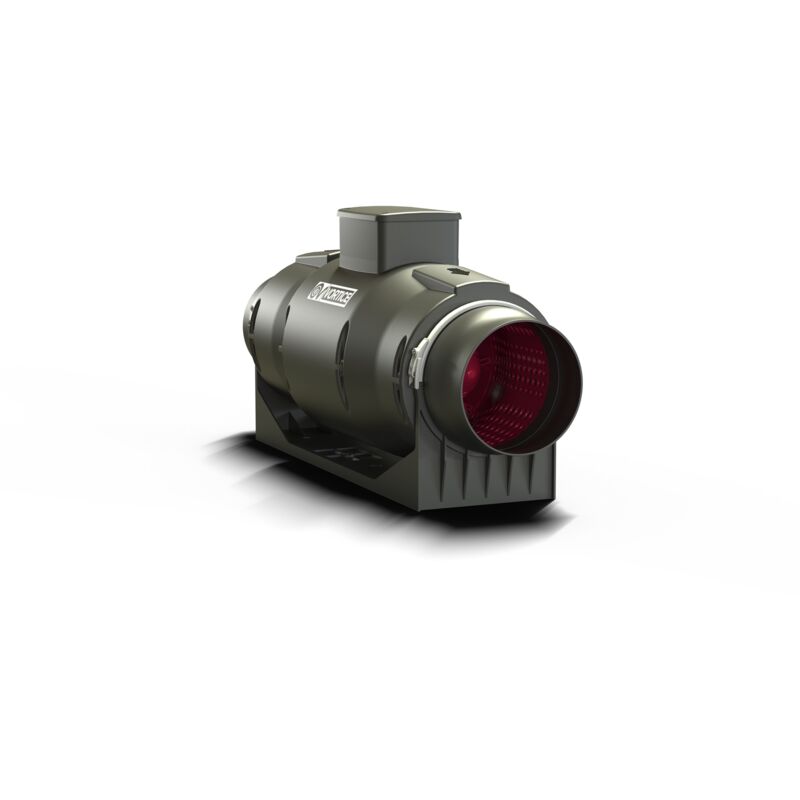

General description The Sound Insulated Inline Fan Lineo 160 Quiet is designed for efficient air circulation while minimizing noise levels. Its robust construction and advanced features make it suitable for various applications in home improvement and DIY projects. Technical specifications Voltage: 220-240 V ~ 50/60 Hz Housing colour: black Housing material: polypropylene Nominal size: 160 mm Bearings: ball bearing Speed levels: 3 Wattage: 24 / 37 / 50 W Current consumption: 0.14 / 0.17 / 0.22 A Revolutions per minute: 1040 / 1430 / 2030 Airflow rate: 255 / 350 / 510 m³/h Breakout sound pressure level Lp-3m: 14.1 / 22.5 / 30.2 dB(A) Breakout sound power level Lw: 34.6 / 43 / 50.7 dB(A) Total pressure Pmax: 103 / 152 / 210.9 Pa Max. temperature of transported air: +55°C Protection class: IP45 Insulation class: II Diameter duct connector: 156.5 mm Length: 570 mm Height: 320.5 mm Width: 232 mm Width of mounting bracket: 170 mm Weight: 5.2 kg Thermal overload protection Includes mounting
