Description

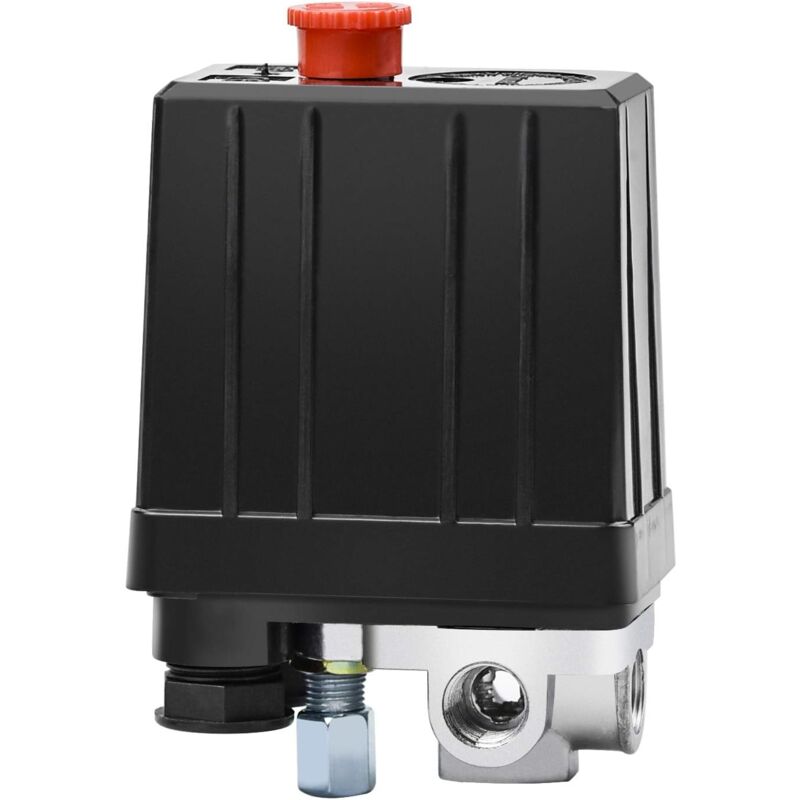

General description The Air Compressor Pressure Switch with 4 Outlets is designed for efficient control of compressor operations. It features a pressure range of 90-120 PSI, making it suitable for various applications in DIY and home improvement projects. Technical specifications Model: SG-3A vertical one-way switch Pressure range: 0.5-0.8 MPA (90-125 PSI) Rated voltage: 220/380V Dimensions: 82*52*127 MM (length*width*height) Exhaust pipe: 6 MM Contact method: normally closed Connector size: inch 1/4, internal thread about 12 MM Outer diameter of pressure relief port: 9.5 MM Maximum current: 16 A Working pressure: 5-8 KG (90-125 PSI) Working life: 80,000 times
