Description

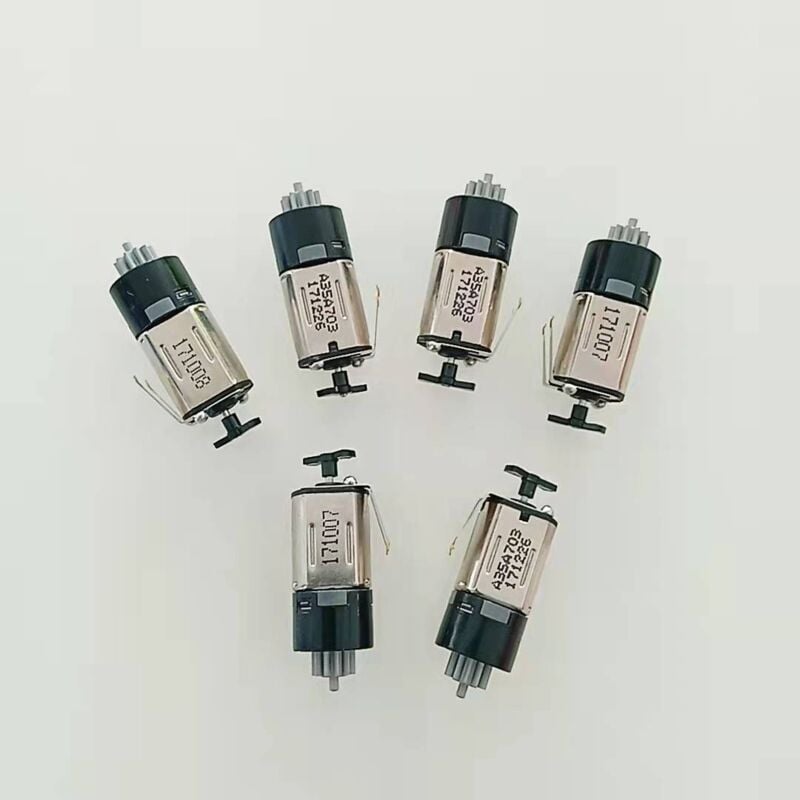

General description Mini M10 Precision Gear Motor is designed for applications requiring slow speed and high torque. This micro planetary motor operates efficiently at a voltage range of 2.5V to 5V, making it suitable for various DIY projects and home improvement tasks. Technical specifications Planetary Gearbox Outer Diameter: 9.9mm Motor Size: 8*10*12mm (M10 Motor) Gear Motor Height: 19.5mm (Motor + Gearbox) Output Shaft: Gear with Outer Diameter of 5.35mm (11 Teeth) Reduction Ratio: 1:171 Weight: 4g Rated Voltage: DC 2.5V No-Load Current: 40mA Load Speed: 92RPM Rated Torque: 9.8 min.m (0.0098 nm) Maximum Torque: 37.2 min.m (0.0372 nm) Power: 0.07 W Test Data: Voltage DC3V – Current 42MA – Speed 110RPM; Voltage DC3.7V – Current 48MA – Speed 135RPM; Voltage DC4.2V – Current 52MA – Speed 154RPM; Voltage DC5V – Current 58MA – Speed 180RPM Other information Package Includes: 6PCS * DC Motor
